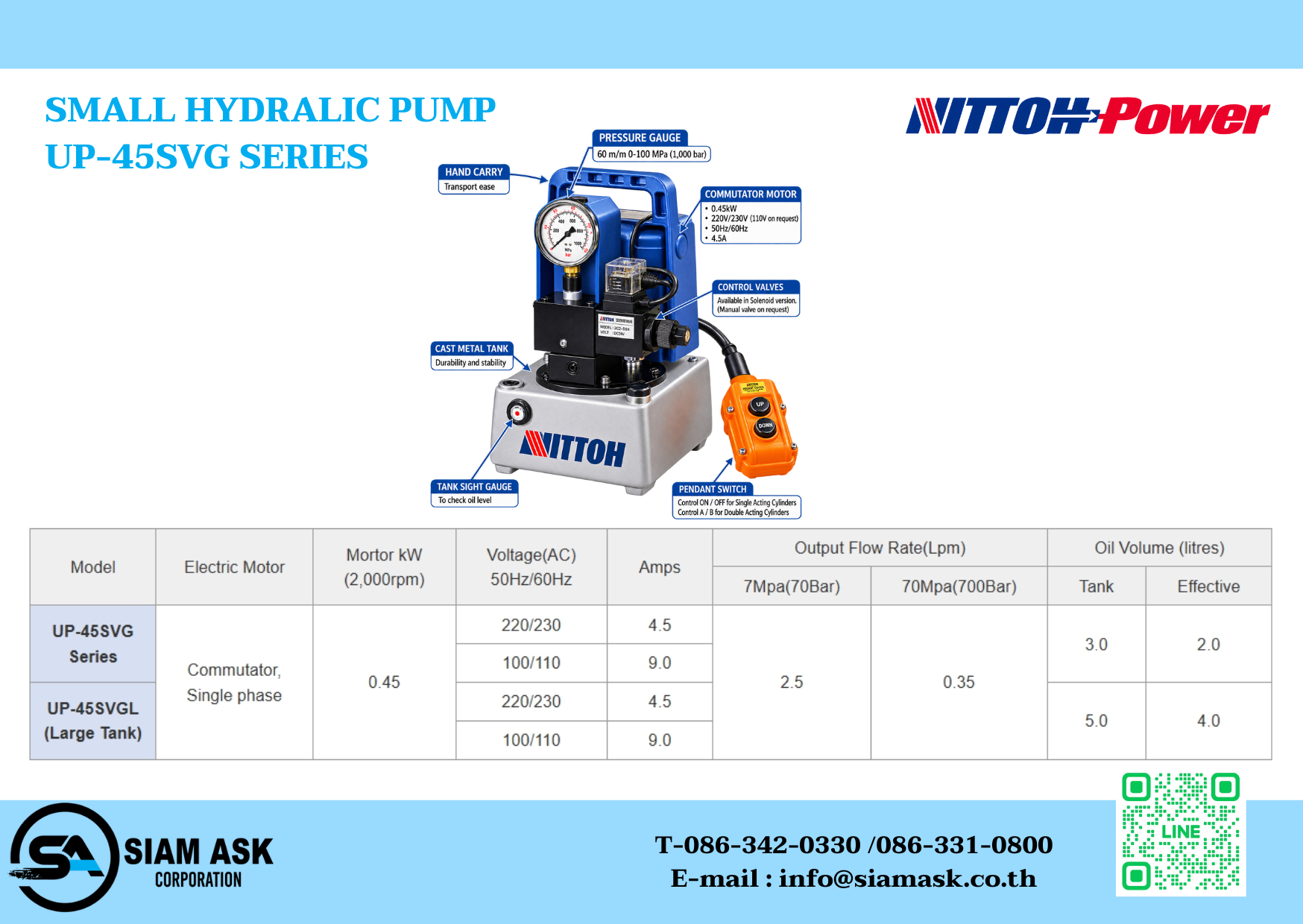

Small Hydraulic Pump — UP-45SVG Series

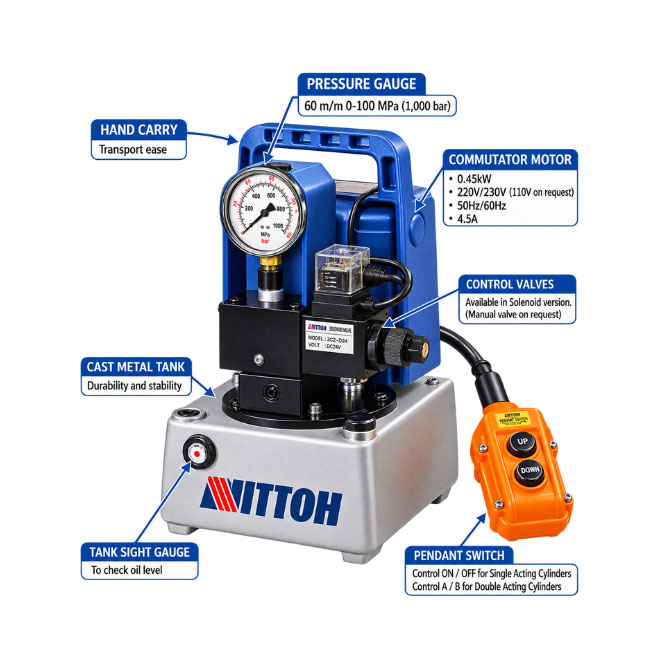

Description
- Pressure gauge: 60 mm dial, 0–100 MPa (1,000 bar)
- Hand carry handle for easy transport
- Commutator motor: 0.45 kW, 220/230V (110V on request), 50/60Hz, 4.5A
- Control valves available in solenoid version (manual valve on request)
- Cast metal tank for durability and stability
- Tank sight gauge to check oil level
- Pendant switch: controls ON/OFF for single acting cylinders, A/B for double acting cylinders
มาเป็นคนแรกที่วิจารณ์ “UP-45SVG”
| Model | Electric Motor | Motor kW (2,000rpm) | Voltage (AC) 50Hz/60Hz | Amps | Output Flow Rate (Lpm) | Oil Volume (litres) | ||
| 7MPa(70Bar) | 70MPa(700Bar) | Tank | Effective | |||||
| UP-45SVG Series | Commutator, Single phase | 0.45 | 220/230 | 4.5 | 2.5 | 0.35 | 3.0 | 2.0 |
| 100/110 | 9.0 | 2.5 | 0.35 | 3.0 | 2.0 | |||
| UP-45SVGL (Large Tank) | Commutator, Single phase | 0.45 | 220/230 | 4.5 | 2.5 | 0.35 | 5.0 | 4.0 |
| 100/110 | 9.0 | 2.5 | 0.35 | 5.0 | 4.0 | |||
