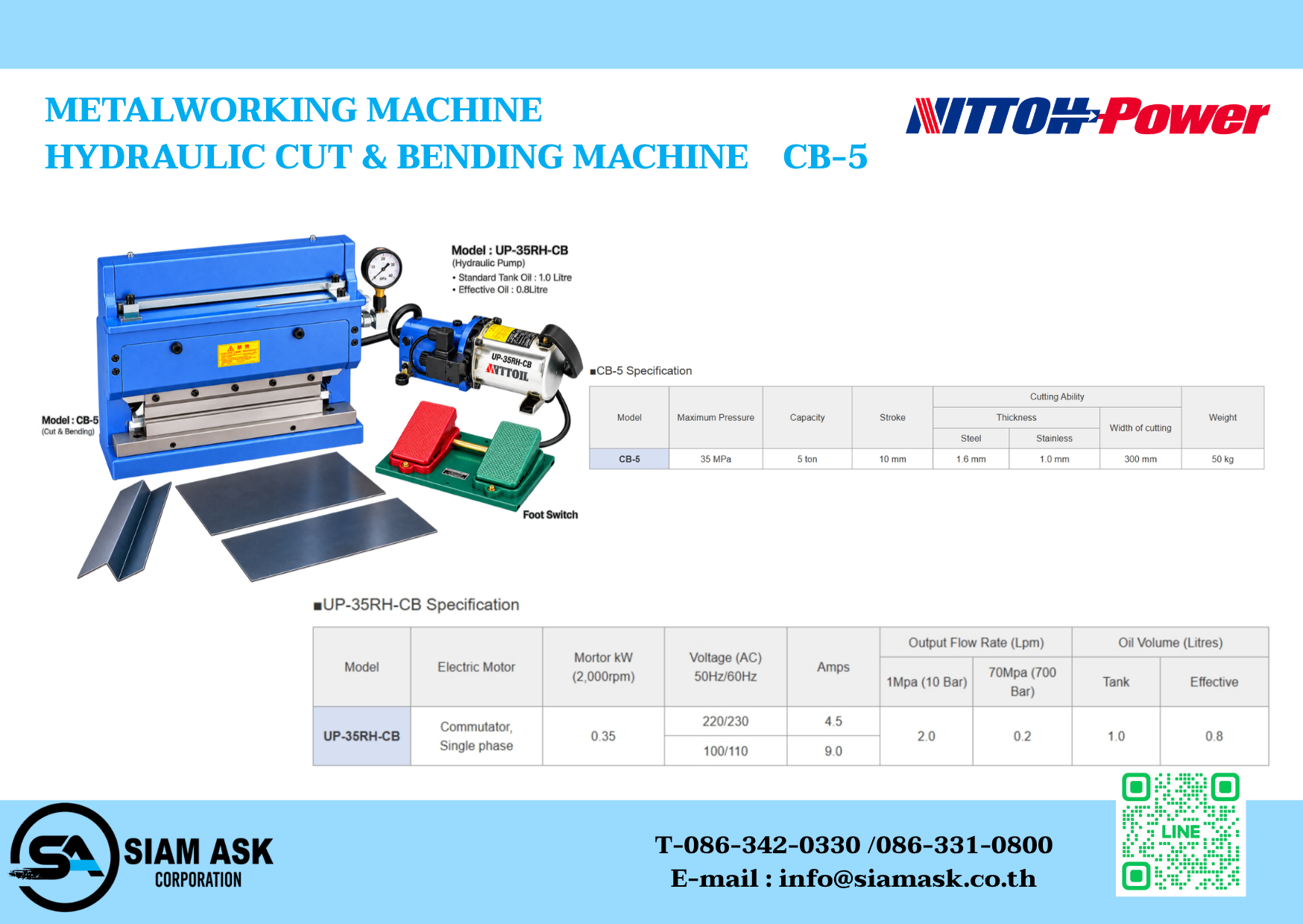

Hydraulic Cut & Bending Machine CB-5

0 out of 5
( ยังไม่มีบทวิจารณ์ )

$1.00

Metalworking Machine — Hydraulic Cut & Bending Machine CB-5

Hydraulic Cut & Bending Machine CB-5

$1.00

In stock
รหัสสินค้า: CB-5
Add to wishlist

คำอธิบาย

Metalworking Machine — Hydraulic Cut & Bending Machine CB-5

Description

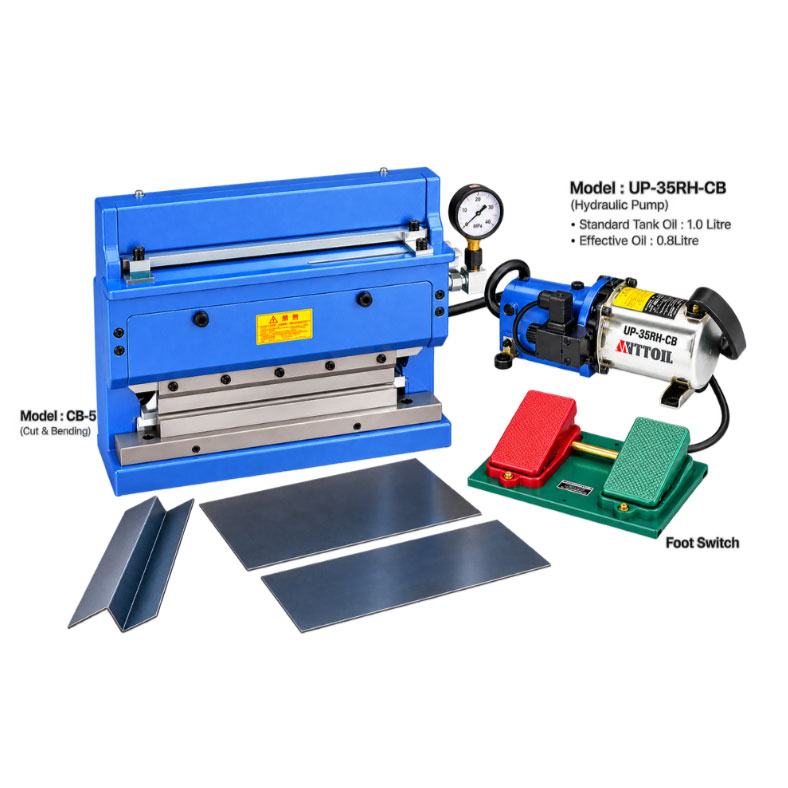

  • Cut & Bending metalworking machine, Model: CB-5
  • Powered by hydraulic pump Model UP-35RH-CB (standard tank oil 1.0 litre, effective oil 0.8 litre)
  • Operated via dual foot switch (red/green)

รีวิว

ยังไม่มีบทวิจารณ์

มาเป็นคนแรกที่วิจารณ์ “Hydraulic Cut & Bending Machine CB-5”

CB-5 Specification

Model Maximum Pressure Capacity Stroke Cutting Ability — Thickness Width of cutting Weight
Steel Stainless
CB-5 35 MPa 5 ton 10 mm 1.6 mm 1.0 mm 300 mm 50 kg

UP-35RH-CB Specification (Hydraulic Pump)

Model Electric Motor Motor kW (2,000rpm) Voltage (AC) 50Hz/60Hz Amps Output Flow Rate (Lpm) Oil Volume (litres)
1MPa(10Bar) 70MPa(700Bar) Tank Effective
UP-35RH-CB Commutator, Single phase 0.35 220/230 4.5 2.0 0.2 1.0 0.8
      100/110 9.0 2.0 0.2 1.0 0.8
