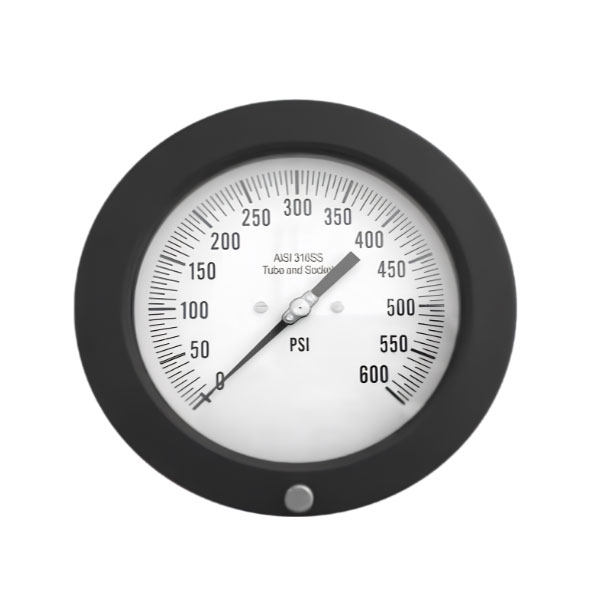

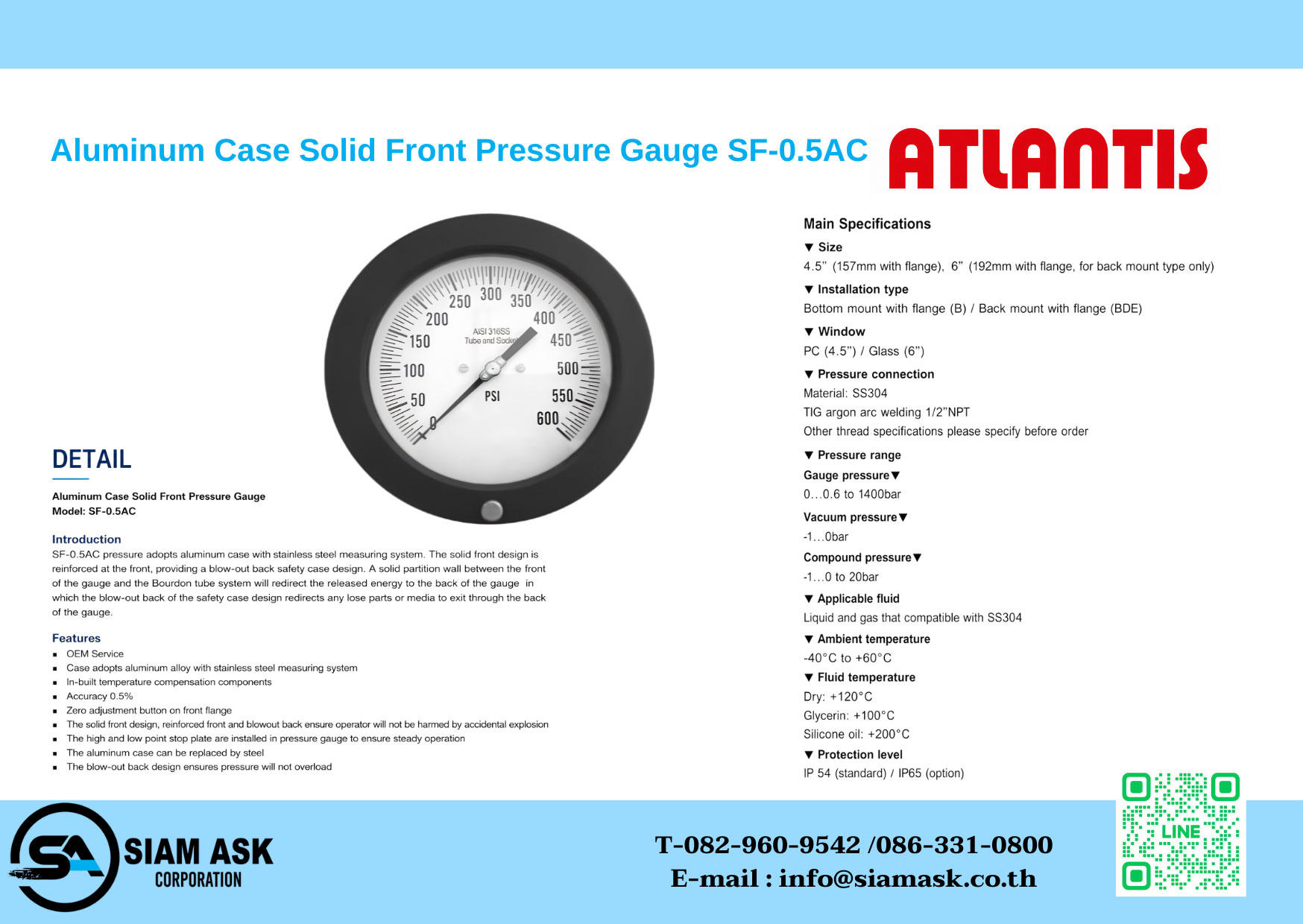

Aluminum Case Solid Front Pressure Gauge

คำอธิบาย

Model: SF-0.5AC

Introduction: SF-0.5AC pressure adopts aluminum case with stainless steel measuring system. The solid front design is reinforced at the front, providing a blow-out back safety case design. A solid partition wall between the front of the gauge and the Bourdon tube system will redirect the released energy to the back of the gauge, in which the blow-out back of the safety case design redirects any lose parts or media to exit through the back of the gauge.

Features:

• OEM Service
• Case adopts aluminum alloy with stainless steel measuring system
• In-built temperature compensation components
• Accuracy 0.5%
• Zero adjustment button on front flange
• The solid front design, reinforced front and blowout back ensure operator will not be harmed by accidental explosion
• The high and low point stop plate are installed in pressure gauge to ensure steady operation
• The aluminum case can be replaced by steel
• The blow-out back design ensures pressure will not overload
