Product code: 020-1207-000, 020-1208-000, 020-1210-000, 020-1211-000

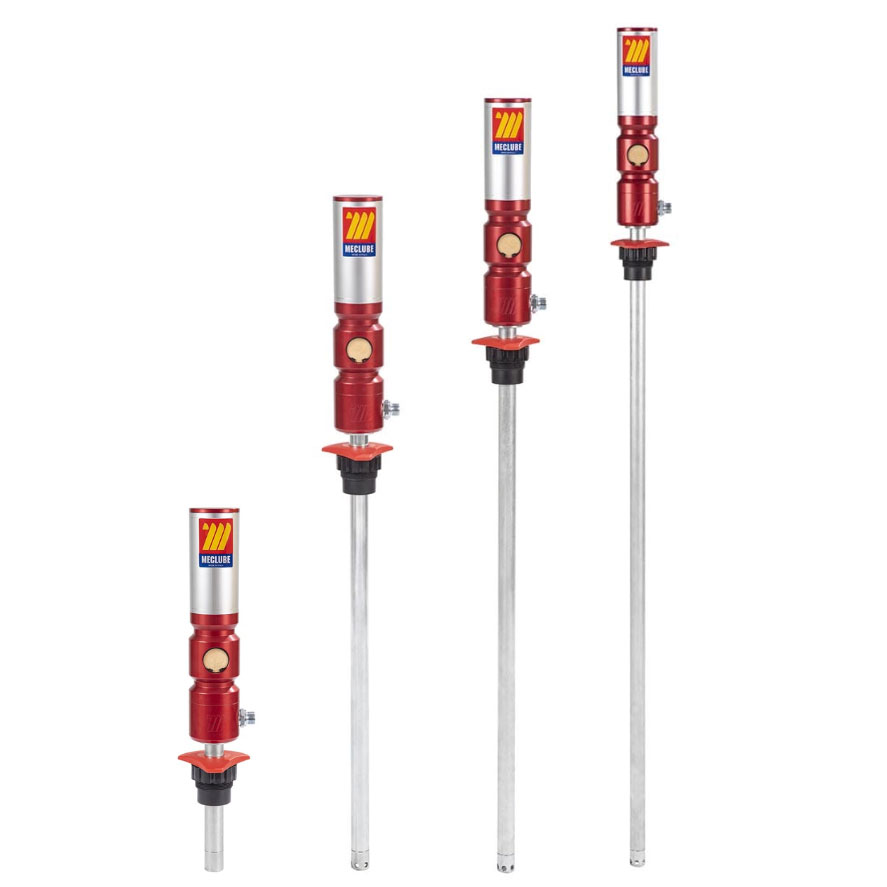

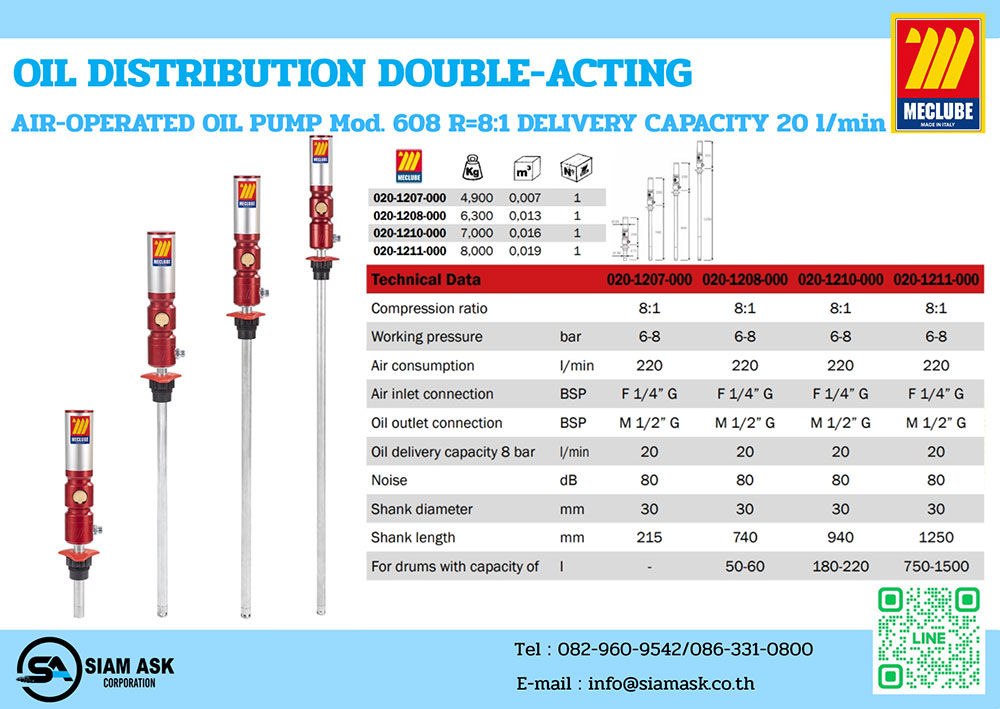

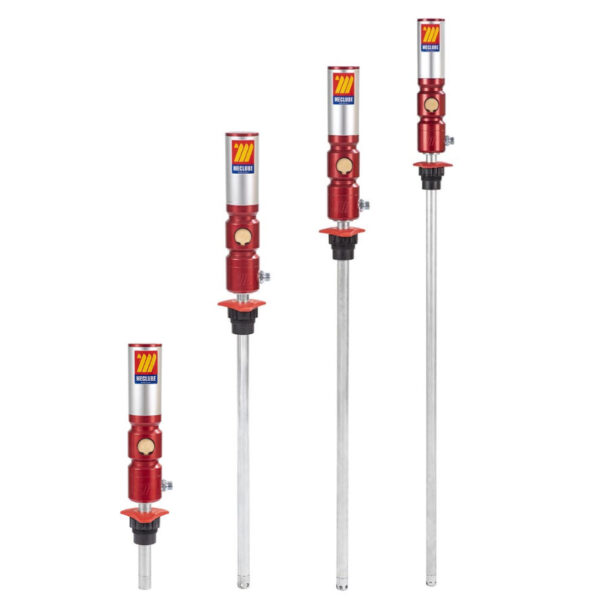

Oil Distribution Double-Acting | R=8:1 | Delivery capacity 20 l/min (brand: MECLUBE, Made in Italy)
มาเป็นคนแรกที่วิจารณ์ “Air-Operated Oil Pump Mod. 608”
| Specification | Unit | 020-1207-000 | 020-1208-000 | 020-1210-000 | 020-1211-000 |
| Weight | kg | 4.900 | 6.300 | 7.000 | 8.000 |
| Packed volume | m³ | 0.007 | 0.013 | 0.016 | 0.019 |
| Pieces per package | pcs | 1 | 1 | 1 | 1 |
| Compression ratio | 8:1 | 8:1 | 8:1 | 8:1 | |
| Working pressure | bar | 6-8 | 6-8 | 6-8 | 6-8 |
| Air consumption | l/min | 220 | 220 | 220 | 220 |
| Air inlet connection | BSP | F 1/4″ G | F 1/4″ G | F 1/4″ G | F 1/4″ G |
| Oil outlet connection | BSP | M 1/2″ G | M 1/2″ G | M 1/2″ G | M 1/2″ G |
| Oil delivery capacity at 8 bar | l/min | 20 | 20 | 20 | 20 |
| Noise | dB | 80 | 80 | 80 | 80 |
| Shank diameter | mm | 30 | 30 | 30 | 30 |
| Shank length | mm | 215 | 740 | 940 | 1250 |
| For drums with capacity of | l | – | 50-60 | 180-220 | 750-1500 |
