UP-73/153/223

0 out of 5
( There are no reviews yet. )

$1.00

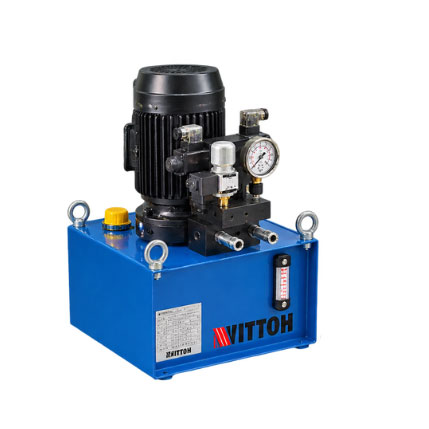

Large Hydraulic Pump — UP-73/153/223 Series

UP-73/153/223

$1.00

In stock
SKU: UP-73/153/223
Add to wishlist

Description

Large Hydraulic Pump — UP-73/153/223 Series

Description

  • Model UP-73: 0.75 kW motor, standard tank oil 24 litres
  • Model UP-153: 1.5 kW motor, standard tank oil 24 litres
  • Model UP-223: 2.2 kW motor, standard tank oil 24 litres
  • TEFC (Totally Enclosed Fan Cooled) E-type motor insulation class, 200/220V three-phase

Reviews

There are no reviews yet.

Be the first to review “UP-73/153/223”

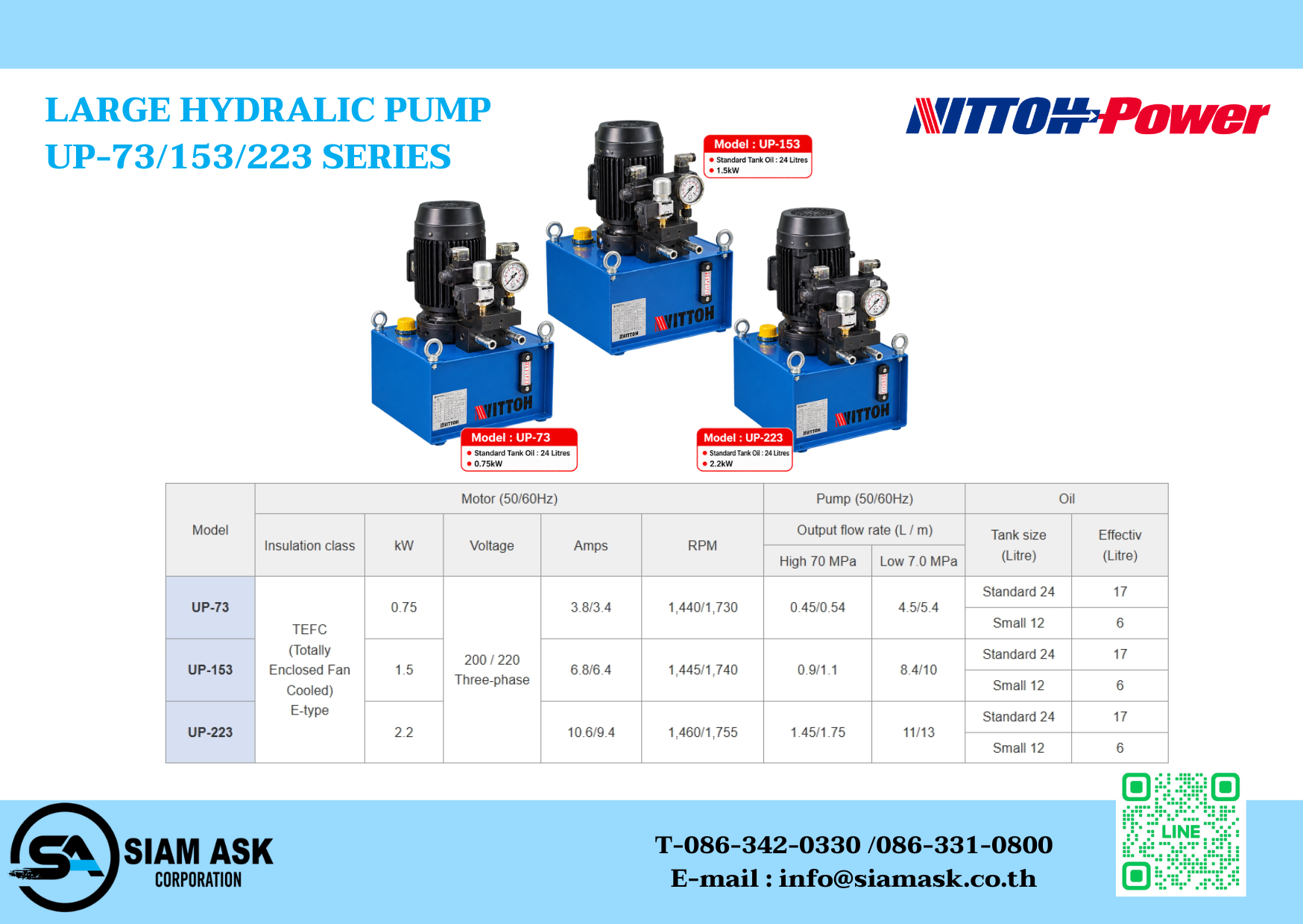

Model Insulation class kW Voltage Amps RPM Output flow rate (L/m) Tank size (Litre) Effective (Litre)
High 70 MPa Low 7.0 MPa
UP-73 TEFC (Totally Enclosed Fan Cooled) E-type 0.75 200/220 Three-phase 3.8/3.4 1,440/1,730 0.45/0.54 4.5/5.4 Standard 24 17
                Small 12 6
UP-153 TEFC (Totally Enclosed Fan Cooled) E-type 1.5 200/220 Three-phase 6.8/6.4 1,445/1,740 0.9/1.1 8.4/10 Standard 24 17
                Small 12 6
UP-223 TEFC (Totally Enclosed Fan Cooled) E-type 2.2 200/220 Three-phase 10.6/9.4 1,460/1,755 1.45/1.75 11/13 Standard 24 17
                Small 12 6
