Description

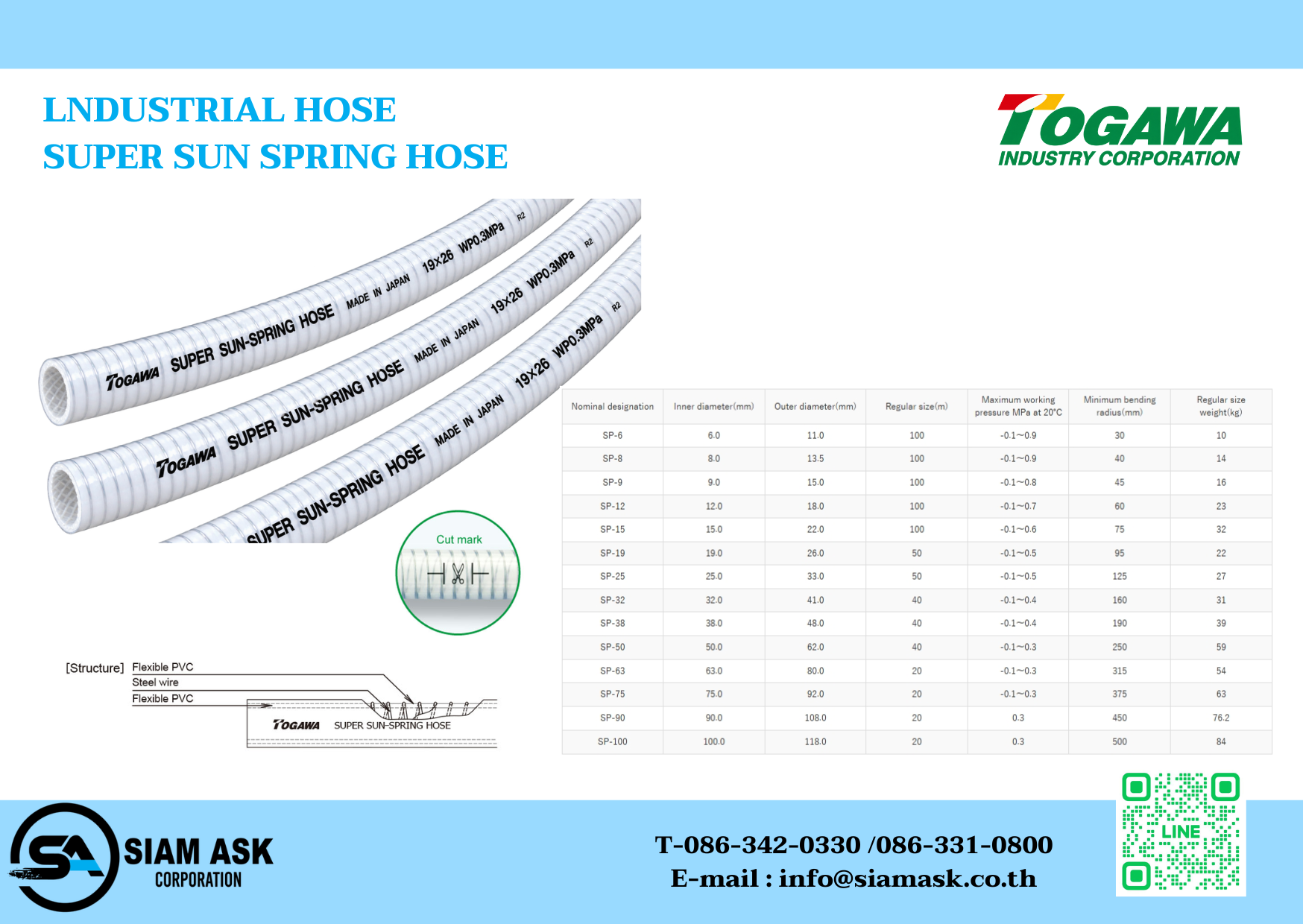

Structure
- Flexible PVC
- Steel wire (spiral reinforcement)
- Flexible PVC
Be the first to review “Super Sun Spring Hose”
| Nominal designation | Inner diameter (mm) | Outer diameter (mm) | Regular size (m) | Max working pressure (MPa at 20°C) | Min bending radius (mm) | Regular size weight (kg) |
| SP-6 | 6.0 | 11.0 | 100 | -0.1 ~ 0.9 | 30 | 10 |
| SP-8 | 8.0 | 13.5 | 100 | -0.1 ~ 0.9 | 40 | 14 |
| SP-9 | 9.0 | 15.0 | 100 | -0.1 ~ 0.8 | 45 | 16 |
| SP-12 | 12.0 | 18.0 | 100 | -0.1 ~ 0.7 | 60 | 23 |
| SP-15 | 15.0 | 22.0 | 100 | -0.1 ~ 0.6 | 75 | 32 |
| SP-19 | 19.0 | 26.0 | 50 | -0.1 ~ 0.5 | 95 | 22 |
| SP-25 | 25.0 | 33.0 | 50 | -0.1 ~ 0.5 | 125 | 27 |
| SP-32 | 32.0 | 41.0 | 40 | -0.1 ~ 0.4 | 160 | 31 |
| SP-38 | 38.0 | 48.0 | 40 | -0.1 ~ 0.4 | 190 | 39 |
| SP-50 | 50.0 | 62.0 | 40 | -0.1 ~ 0.3 | 250 | 59 |
| SP-63 | 63.0 | 80.0 | 20 | -0.1 ~ 0.3 | 315 | 54 |
| SP-75 | 75.0 | 92.0 | 20 | -0.1 ~ 0.3 | 375 | 63 |
| SP-90 | 90.0 | 108.0 | 20 | 0.3 | 450 | 76.2 |
| SP-100 | 100.0 | 118.0 | 20 | 0.3 | 500 | 84 |
