Description

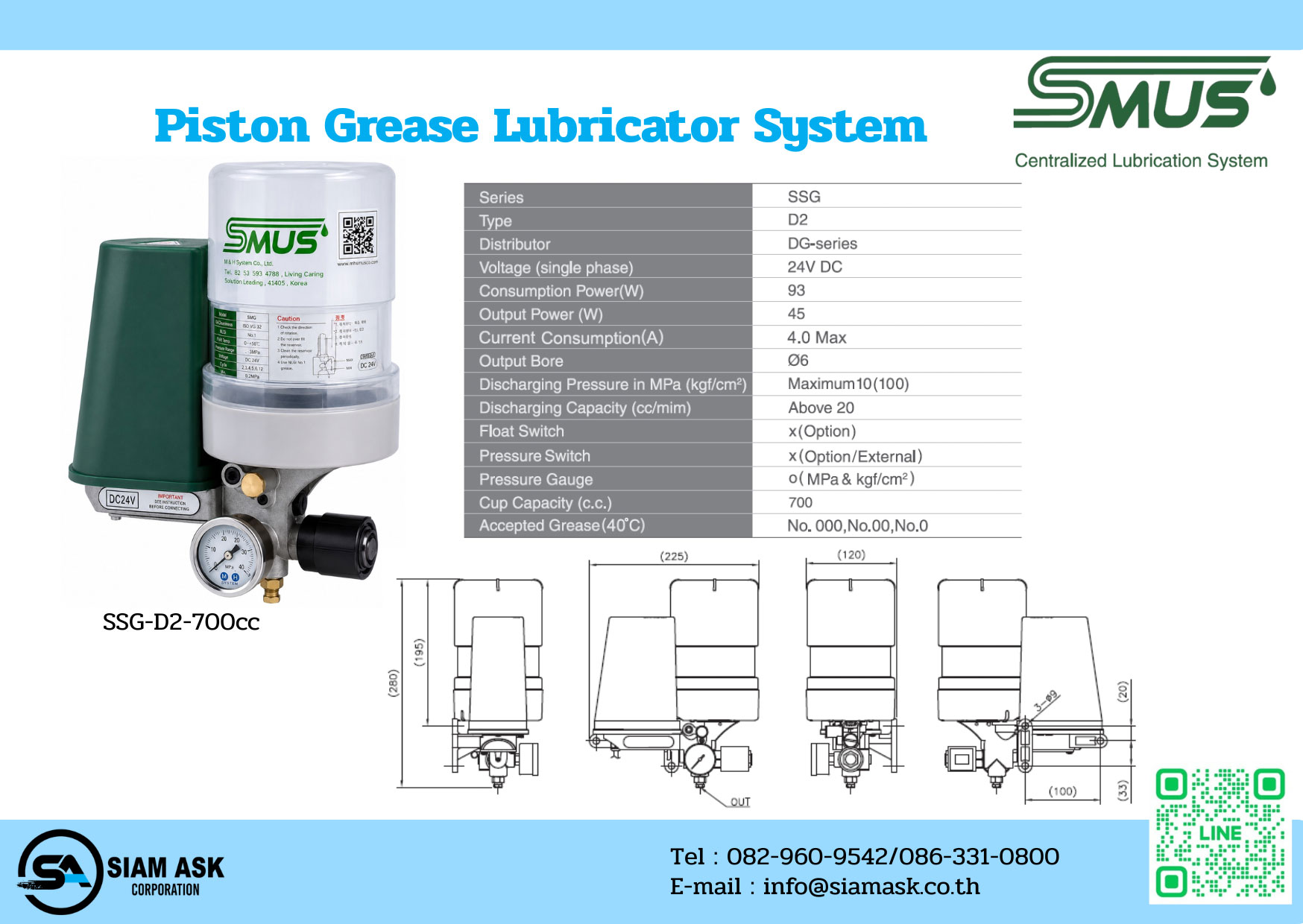

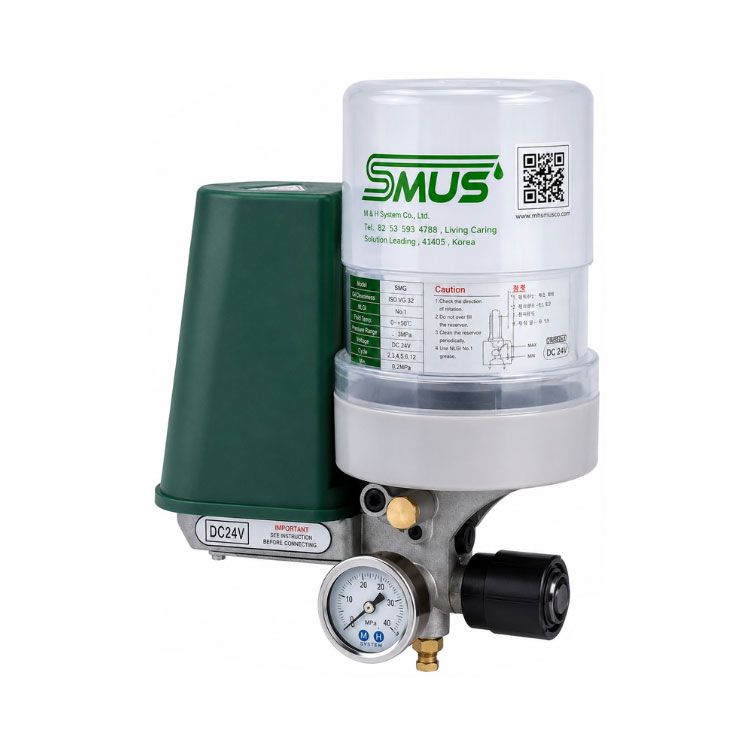

Piston Grease Lubricator System
Model: SSG-D2-700cc
| Item | Specification |
| Series | SSG |
| Type | D2 |
| Distributor | DG-series |
| Voltage (single phase) | 24V DC |
| Consumption Power (W) | 93 |
| Output Power (W) | 45 |
| Current Consumption (A) | 4.0 Max |
| Output Bore | Ø6 |
| Discharging Pressure in MPa (kgf/cm²) | Maximum 10 (100) |
| Discharging Capacity (cc/min) | Above 20 |
| Float Switch | x (Option) |
| Pressure Switch | x (Option/External) |
| Pressure Gauge | o (MPa & kgf/cm²) |
| Cup Capacity (c.c.) | 700 |
| Accepted Grease | No.000, No.00, No.0 |
