Description

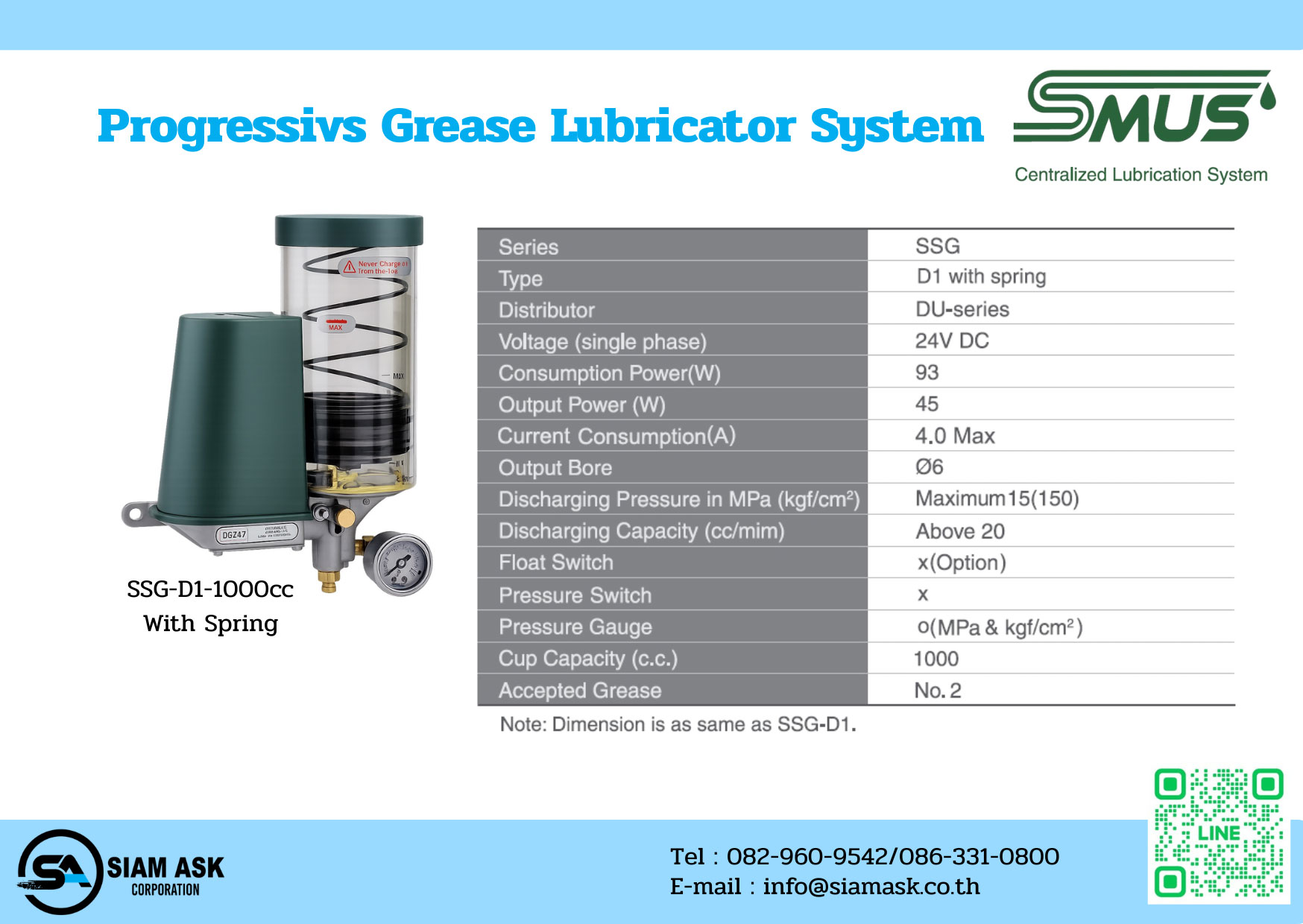

Progressive Grease Lubricator System

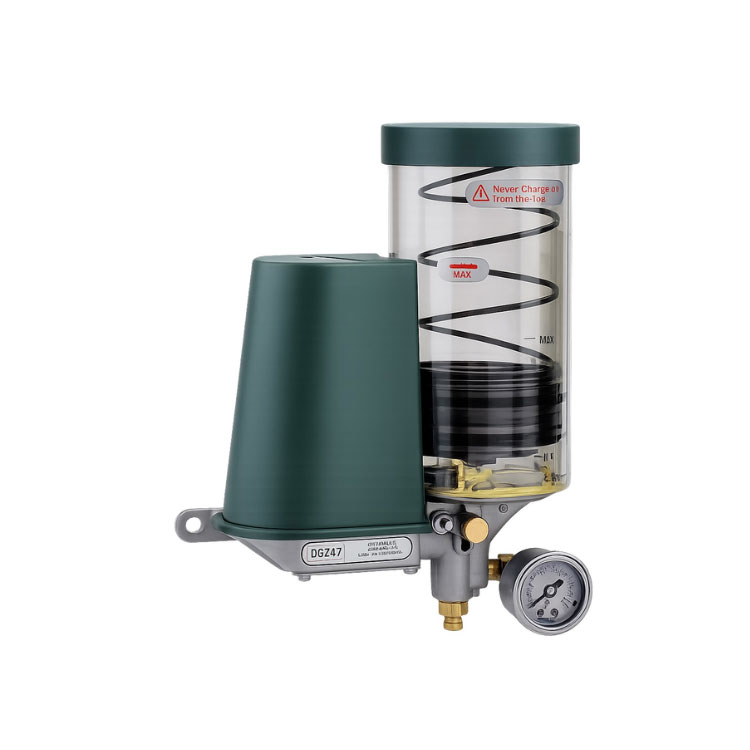

Model: SSG-D1-1000cc With Spring
| Item | Specification |
| Series | SSG |
| Type | D1 with spring |
| Distributor | DU-series |
| Voltage (single phase) | 24V DC |
| Consumption Power (W) | 93 |
| Output Power (W) | 45 |
| Current Consumption (A) | 4.0 Max |
| Output Bore | Ø6 |
| Discharging Pressure in MPa (kgf/cm²) | Maximum 15 (150) |
| Discharging Capacity (cc/min) | Above 20 |
| Float Switch | x (Option) |
| Pressure Switch | x |
| Pressure Gauge | o (MPa & kgf/cm²) |
| Cup Capacity (c.c.) | 1000 |
| Accepted Grease | No.2 |
