Description

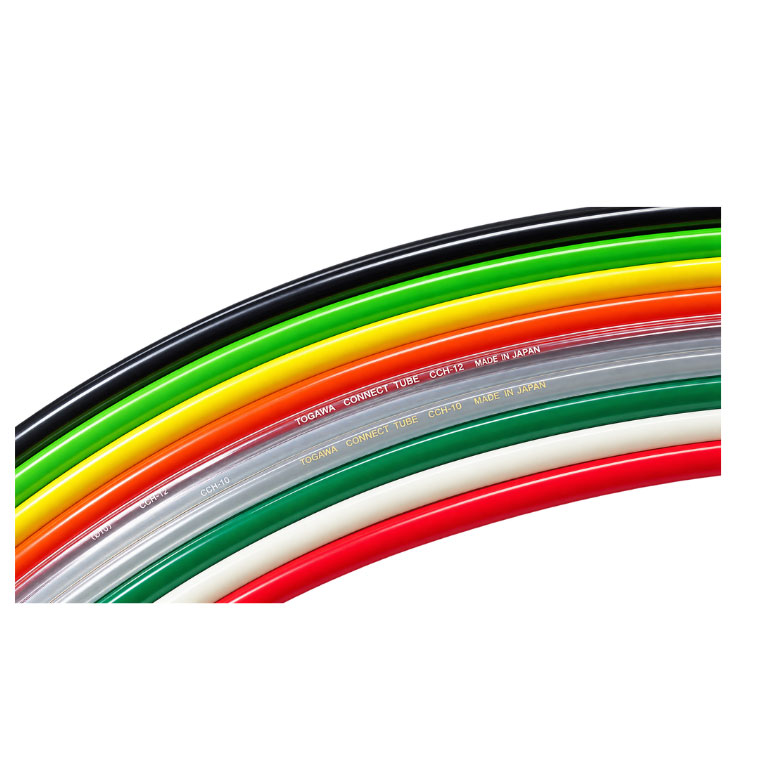

- Multi-color connect tubing (black, green, yellow, orange, grey, red, etc.)
Be the first to review “Connect Tube (CH)”

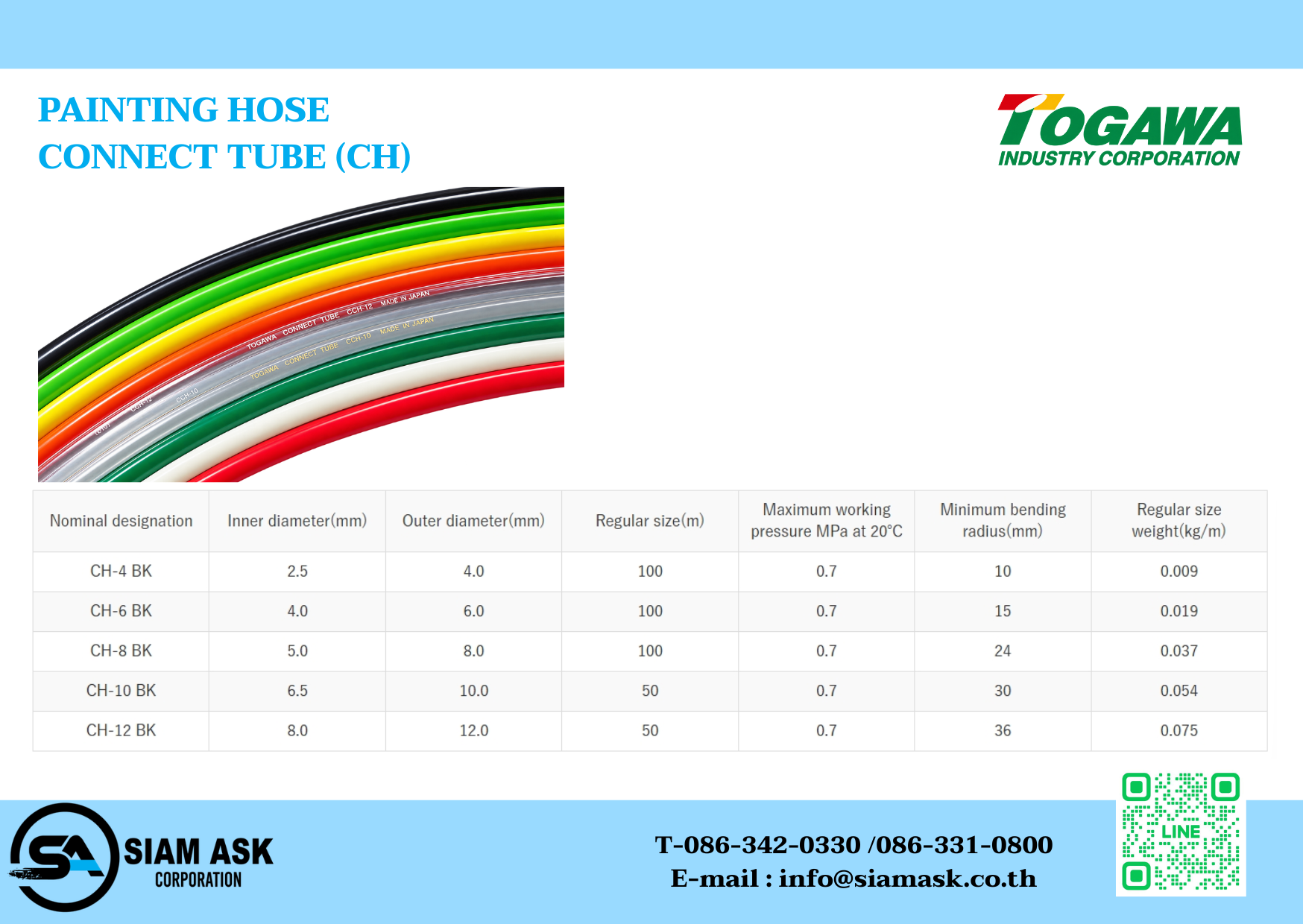

| Nominal designation | Inner diameter (mm) | Outer diameter (mm) | Regular size (m) | Max working pressure (MPa at 20°C) | Min bending radius (mm) | Regular size weight (kg/m) |
| CH-4 BK | 2.5 | 4.0 | 100 | 0.7 | 10 | 0.009 |
| CH-6 BK | 4.0 | 6.0 | 100 | 0.7 | 15 | 0.019 |
| CH-8 BK | 5.0 | 8.0 | 100 | 0.7 | 24 | 0.037 |
| CH-10 BK | 6.5 | 10.0 | 50 | 0.7 | 30 | 0.054 |
| CH-12 BK | 8.0 | 12.0 | 50 | 0.7 | 36 | 0.075 |
