1. YLB includes pressure switch to ensure the normal function.
2. Oil can be recycled after lubrication process.
3. Include pressure valve and pressure gauge for adjustment.
4. The float switch outputs signal when the oil level is low.
5. Include cycling device and filter to ensure oil quality.

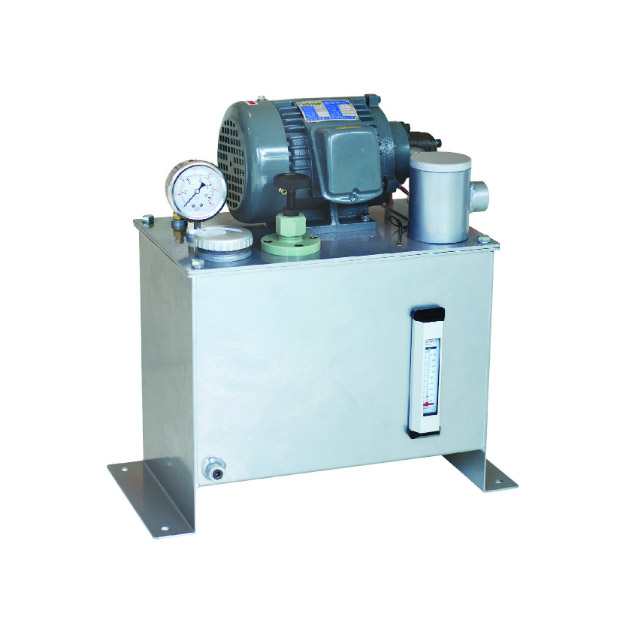

| Model | YLB(Horizontal) |
| Voltage (Three Phase) | 220V/ 380V or 220V/ 440V |
| Power (HP) | 1/4 |
| Capacity of Terminal Output | 0.5A 240Vac/ 200Vdc(Float switch) |
| Pole | 4 |
| Current Frequency (Hz) | 50/60 |
| Max. Output Pressure Mpa(kgf/cm2) | 0.5(5) |
| Output Volume (L/min) at Ø10 | 2.7 (TOP-11A) / 4.0 (TOP-12A) / 5.2 (TOP-13A) |
| Float Switch | O |
| Pressure Switch (kgf/cm2) | X(Option) |
| Pressure Gauge | O |
| Output Bore | Ø6 or Ø8 or Ø10 |
| Alarm Beeper | X |
| Tank Capacity (L) | 20/ 30/ 40/ 60/ 80 |
| YLB Tank Dim | LxWxH |
| 20L | 444x297x298 |
| 30L | 410x335x400 |
| 40L | 560x410x400 |
| 60L | 600x390x400 |
| 80L | 610x420x460 |
Note：
1. Metal tank of other capacity can be tailered.
2. Recommended oil viscosiry range is 30-150cSt.
3. The output volume is based on 60Hz and 110v/220v.
Because of continuous improvements, above specifications are subject to change without prior notice.
