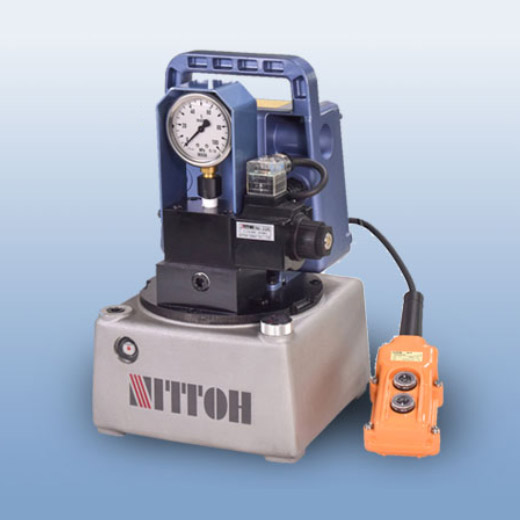

The compact, high-power UP-45SVG (70Mpa) series is incorporated as a source of hydraulic pressure at various places. It realized the best out put flow rate in this market.
| Model | Electric Motor | Mortor kW (2,000rpm) | Voltage(AC) 50Hz/60Hz | Amps | Output Flow Rate(Lpm) | Oil Volume (litres) | ||
| 7Mpa(70Bar) | 70Mpa(700Bar) | Tank | Effective | |||||
| UP-45SVG Series | Commutator, Single phase | 0.45 | 220/230 | 4.5 | 2.5 | 0.35 | 3.0 | 2.0 |
| 100/110 | 9.0 | |||||||
| UP-45SVGL (Large Tank) |
220/230 | 4.5 | 5.0 | 4.0 | ||||
More details
The UP-45SVG series realized the best out put flow rate inthis market. It is used in various scenes regardless of location.
The UP-45SVG series was adopted as a hydraulic source of jack-up to support inclined houses and condominiums during the 2011 Tōhoku earthquake and tsunami and the 2016 Kumamoto earthquakes.
It is also adopted as a source of hydraulic pressure for jack-up when transporting Shinkansen or train car by land.
Our UP-45SVG series is used when lifting bridge of highway (new Tomei Expressway etc) to piers.
We delivered our pump to Kyushu Electric Power Company as a source of hydraulic pressure when setting up a large power transmission tower.
