DESCRIPTION

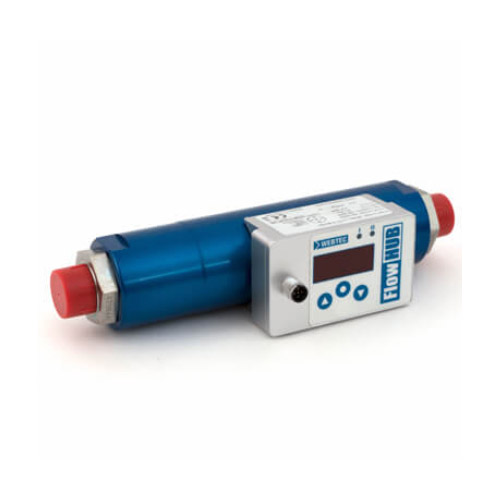

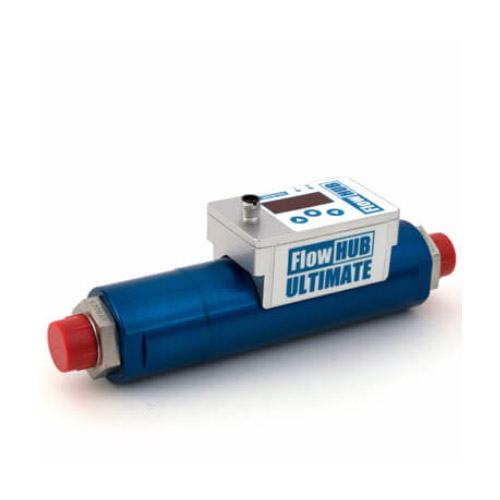

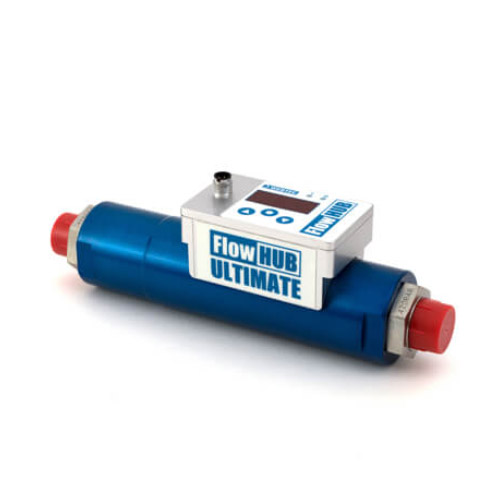

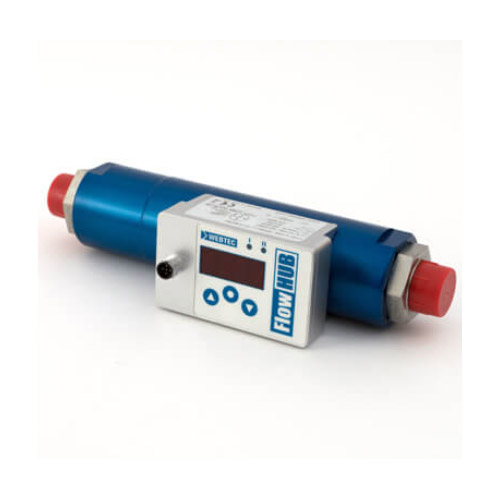

The FlowHUB is ideal for condition monitoring, test stands and closed loop control applications both for fluid power and lubrication systems.
- Flows up to 360 lpm (100 US gpm)
- Pressure up to 420 bar (6000 psi)
- Accuracy 3% of full scale
- 5 flow sizes range of: 1-360 lpm, 0.25-100 US gpm
- Repeatability better than 1%
- Temperature measurement built-in
Wide range of options: Choice of analogue outputs V or mA, Two programmable switches, Complete with adaptors fitted (BSP or SAE), Engineering units lpm / US gpm
DOWNLOAD FLOWHUB-BU-ENG-2284
