DESCRIPTION

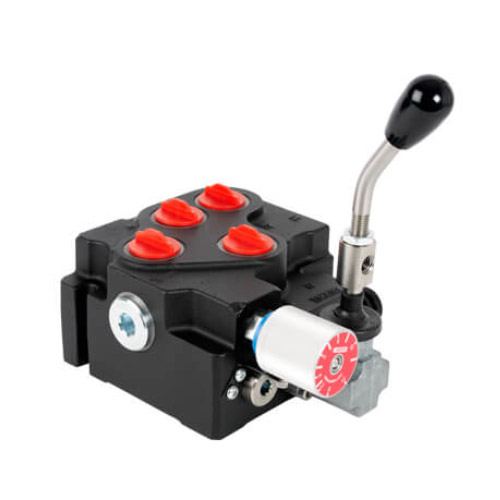

The CV120 valve is a very compact valve where a variable priority flow divider is combined with a directional control valve in one body. This reduces both cost and size by reducing the required number of hoses and fittings and allows for a more compact installation.
Maximum Operating Pressure: 250 bar (3600 psi)
Total Flow Capacity: 120 lpm (32 USgpm)
Regulated Flow Capacity: 0 – 95 lpm (0 – 25 USgpm)
Choice of BSPP and SAE ports
Material: Steel components in cast. Iron body: aluminium knob
Weight: 8.9 kg (19.5 lbs)
Clearly marked single-turn hand dial permits fast visual adjustments to pre-determined ‘Priority’ flow
DOWNLOAD CV120-BU-ENG-3552
