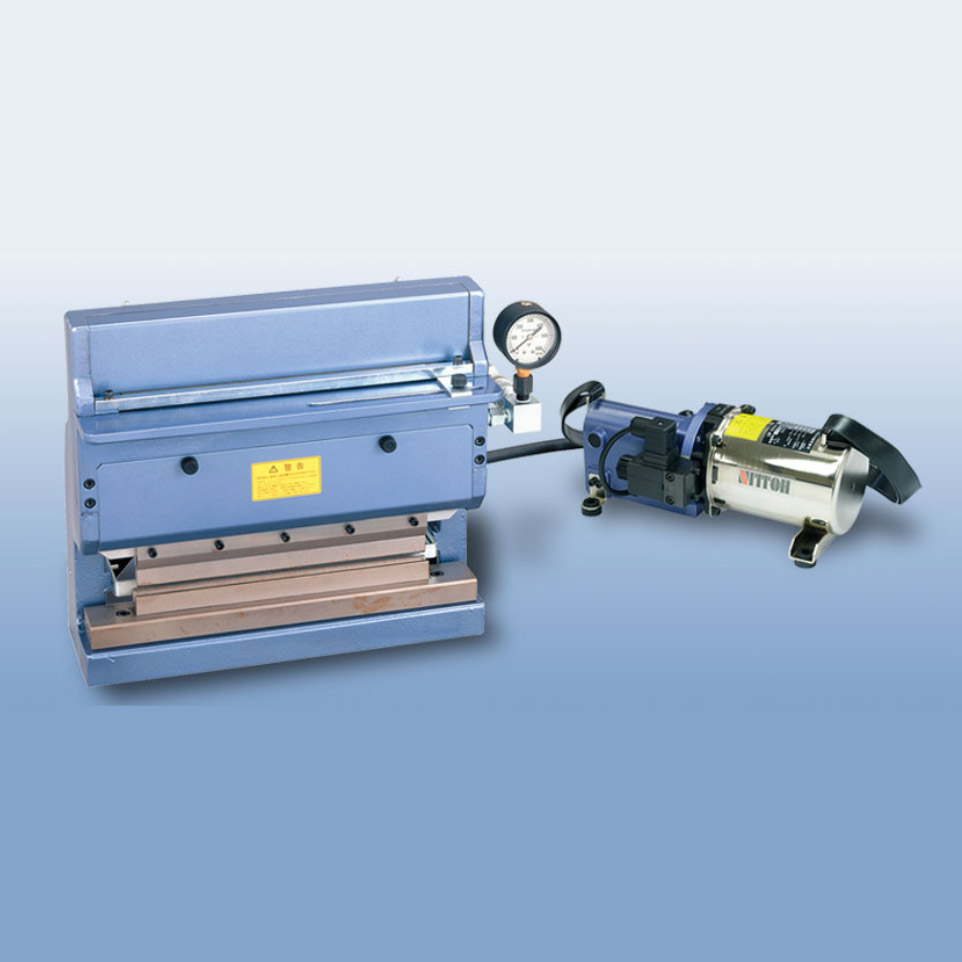

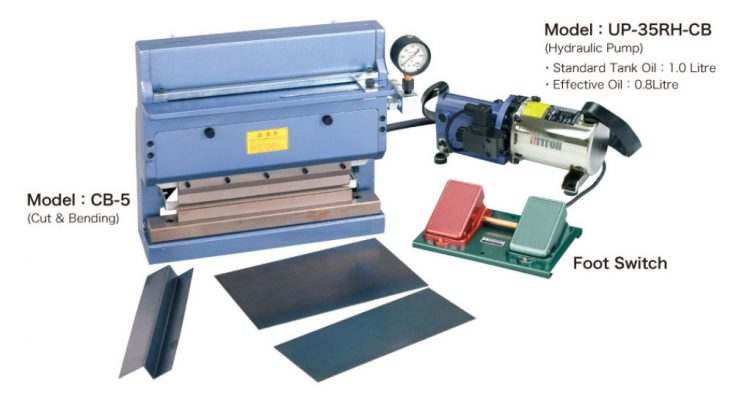

CB-5 is Excellent in cutting and bending of thin sheet metal. Small desktop type, so it is possible to save space on existing equipment. 100V～230V available, it can be used anywhere.
■CB-5 Specification
| Model | Maximum Pressure | Capacity | Stroke | Cutting Ability | Weight | ||
| Thickness | Width of cutting | ||||||
| Steel | Stainless | ||||||
| CB-5 | 35 MPa | 5 ton | 10 mm | 1.6 mm | 1.0 mm | 300 mm | 50 kg |
■UP-35RH-CB Specification
| Model | Electric Motor | Mortor kW (2,000rpm) |
Voltage (AC) 50Hz/60Hz |
Amps | Output Flow Rate (Lpm) | Oil Volume (Litres) | ||
| 1Mpa (10 Bar) | 70Mpa (700 Bar) | Tank | Effective | |||||
| UP-35RH-CB | Commutator, Single phase |
0.35 | 220/230 | 4.5 | 2.0 | 0.2 | 1.0 | 0.8 |
| 100/110 | 9.0 | |||||||
