DESCRIPTION

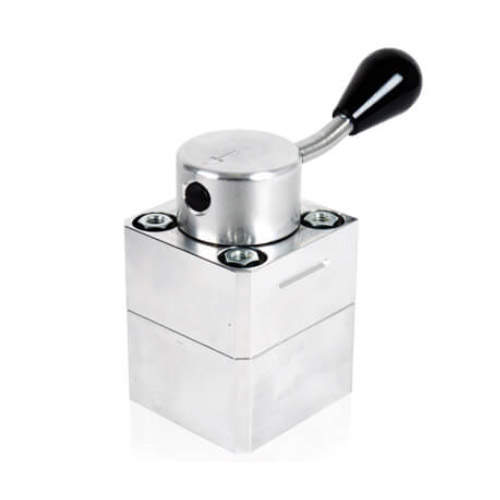

The 180 series of high-pressure aluminium hydraulic rotary shear directional control valves are the ideal solution for control of hydraulic actuators on mobile and industrial applications where internal leakage must be minimised.
Maximum Pressure: Up to 700 bar, 10,000 psi
Maximum Flow: Up to 38 lpm, 10 US gpm
SAE/NPT/BSP ports, or manifold ported to D03/CETOP3/PCD types.
Steel components in aluminium body
Maximum tank port pressure 17 bar, 260 psi
Over 4500 possible configurations
The valves utilise an optically flat rotary spool with pressure loaded seats, to ensure either zero or near zero leakage. They have excellent tolerance to contaminates.
DOWNLOAD 180VALVE-BU-ENG-1987
